SRL-H80 Horizontal Cosmetic Sleeve Labeling Machine

Feature：

Designed specifically for bottles with unstable upright positions:
Utilizing a unique horizontal conveyor architecture, it perfectly solves the problem of high center of gravity, small diameter, and inability to be conveyed upright in products such as eyebrow pencils, lipsticks, and slender serum bottles, eliminating bottle tipping and jamming during production.
Integrated Labeling and Heat Shrink Function:
Features a built-in high-efficiency heat shrink tunnel, combining labeling and shrinking processes into one. No additional shrink machine is needed, saving over 50% of production line space and reducing bottle loss during inter-process handling.
Fully Servo Digital Drive System:
Abandoning traditional mechanical transmission, the core axis system employs multi-axis linkage servo control. This enables automatic correction of label length and micron-level adjustment of cutting position. No mechanical adjustments are needed during order changes; parameters can be switched simply by touchscreen, reducing changeover time to minutes.
Flexible Clamping and Zero-Damage Conveying:
Equipped with adaptive flexible clamps and synchronous belt conveyor technology, it automatically adjusts clamping force according to the bottle shape. Even for easily deformable tubing or glass ampoules, it achieves gentle, non-squeezing, and scratch-free transport with an extremely low breakage rate. High-Precision Visual Correction (Optional)
Integrated industrial vision inspection system captures the label color mark and bottle position in real time, automatically compensating for deviations. Ensures labeling accuracy is controlled within ±0.5mm, with near-zero label wrinkling rate, improving the finished product's appearance and texture.
Human-Machine Harmonious and Safe Architecture
CE-compliant safety design, equipped with a transparent safety shield, emergency stop button, and light curtain protection. The user interface (HMI) uses graphical guidance and has self-diagnostic functions, lowering the technical threshold for operators and ensuring production safety.
Broad Material Adaptability
For the diversity of cosmetic packaging, it is compatible with various heat shrink film materials such as PVC, PETG, OPS, and POF, adapting to label requirements with different thicknesses and shrinkage rates, meeting various process needs from partial labeling to full-bottle labeling.

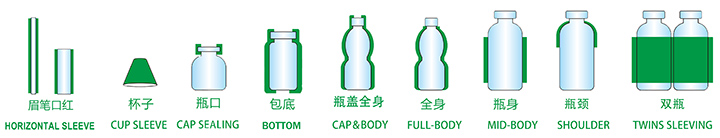

Application：

Specification：
