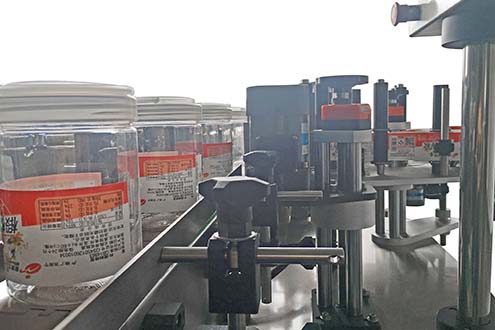

SRT-101 fixed point round bottle labeling machine

Scope of application: round bottles of various metals, glass, plastics, etc. (such as syrup bottles, health care bottles, etc.).
Process flow: feeding→differential splitting bottle→clamping positioning labeling→finished product→lower process
Features introduction:
1. The labeling motor adopts Yaskawa servo motor and driver, which is high speed and precise.
2. Equipped with German Siemens programmable controller (PLC) and Pro-face touch screen, the operation is simple and fast.
3. The main mechanism is made of SUS304 stainless steel and A6061 high-strength aluminum alloy, which conforms to GMP regulations.
4. The bottle is labeled several times, and the round bottle can be double-labeled or double-labeled.
5. Function matching:
Feed carousel feed or side connection
Fixed point positioning labeling (bottle with identification point)
Batch printing system (hot stamping machine or inkjet printer)
Leak labeling, leak printing, unclear CCD image detection and rejection system
Germany SICK ultrasonic transparent label detection photoelectric

Other special features (such as QR code, barcode reading detection

Labeling speed:	80 bottles / minute (depending on bottle diameter and label length)
Labeling accuracy:	±0.5mm
Labeling object adaptation range:	Ф30mm-Ф200mm
Voltage power:	AC220V 50Hz 3KW
